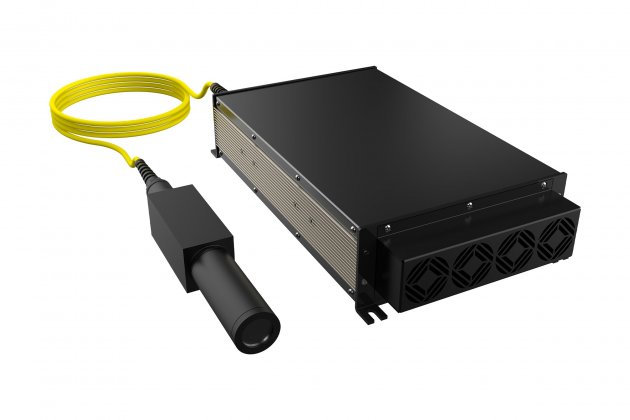

HP-5W Fiber Laser
Introduction
| Features and Advantages： |
| MOPA |
| Pulse Width Modulation (0.75 ns- 25 ns) |
| Wide Frequency Modulation (20- 4000 kHz) |
| High Peak Power (>40 kW) |
| Excellent Beam Quality (M2 < 1.5) |
| Stable Output and Reliability ( Average Power Stability <5%) |
| Applied Materials： |
| Metal(Fe/Cu/Al/Zn/Si) |
| Rare Alloy(Au/Ag/Ti) |
| Alloy (Carbon Steel, Stainless Steel) |
| Surface Treatment (Anodized, Coating) |
| Plastic/Polymer (Polyimide) |
| ABS(Distributor housing/Commodity) |
| Epoxy(Electronic packing/Insulating layer) |
| Applications： |
| Plastic Marking |
| Metal Marking(Black/Color) |
| Laser Drilling |
| Surface Treatment(Engraving/Iron Derusting) |
| Thin Metal Cutting |
| Silicon Wafer Processing |
| Solar Cell Manufacturing |
| Panel Circuit Processing |
| Applied Industries： |
| Automotive Components |
| Hardware Tools |
| Electronic Components |
| Integrated Circuit |
| Electrical Appliances |
| Precision Machinery |
| Medical Equipment |
Specifications
BRIMO HP Pulsed Fiber Laser
| Optical Properties： | |
| Average Power | 5 (W) |
| Centroid Wavelength | 1064 ± 3 (nm) |
| Adjustable Repetition Rate Range | 20 - 4000 (kHz) |
| Adjustable Pulse Width Range | 0.75 - 25 ns |
| Max. Peak Power | > 40 (kW) |
| Spatial Beam Quality | M² < 1.5 |
| Max. Pulse Energy | 0.25 (mJ) |
| Beam Diameter | 7 ± 1 (mm) |
| Adjustable Percentage Range of Output Power | 5 - 100 (%) |
| Output Power Stability | < 3 (%) |
| Polarization State | Random |
| Integrated Guide Light | Optional |
| Power Supply | 110/220V, 50/60Hz, Single Phase |
